Chapter # 10
K-means Clustering

Introduction

Clustering is the task of dividing the population or data points into a number of groups such that data points in the same groups are more similar to other data points in the same group than those in other groups. In simple words, the aim is to segregate groups with similar traits and assign them into clusters.

Application of Clustering in Real World

Clustering is a widely used technique in the industry. It is being used in almost every domain, from banking and recommendation engines to document clustering and image segmentation.

  • Customer Segmentation -

One of the most common applications of clustering is customer segmentation. And it isn’t just limited to banking. This strategy is across functions, including telecom, e-commerce, sports, advertising, sales, etc.

  • Document Clustering -

Another common application of clustering. Let’s say you have multiple documents and you need to cluster similar documents together. Clustering helps us group these documents such that similar documents are in the same clusters.

  • Image Segmentation -

We can also use clustering to perform image segmentation. In image segmentation, we try to club similar pixels in the image together. We can apply clustering to create clusters having similar pixels in the same group.

  • Recommendation Engines -

Clustering can also be used in recommendation engines. Let’s say you want to recommend songs to your friends. You can look at the songs liked by that person and then use clustering to find similar songs and finally recommend the most similar songs.

K-means Clustering

K-means clustering is one of the simplest and popular unsupervised machine learning algorithms. You’ll define a target number k, which refers to the number of centroids you need in the dataset. A centroid is the imaginary or real location representing the center of the cluster. Every data point is allocated to each of the clusters through reducing the in-cluster sum of squares. In other words, the K-means algorithm identifies k number of centroids, and then allocates every data point to the nearest cluster, while keeping the centroids as small as possible. The ‘means’ in the K-means refers to averaging of the data; that is, finding the centroid. Please see Figure 1 to get an idea about K-means clustering.

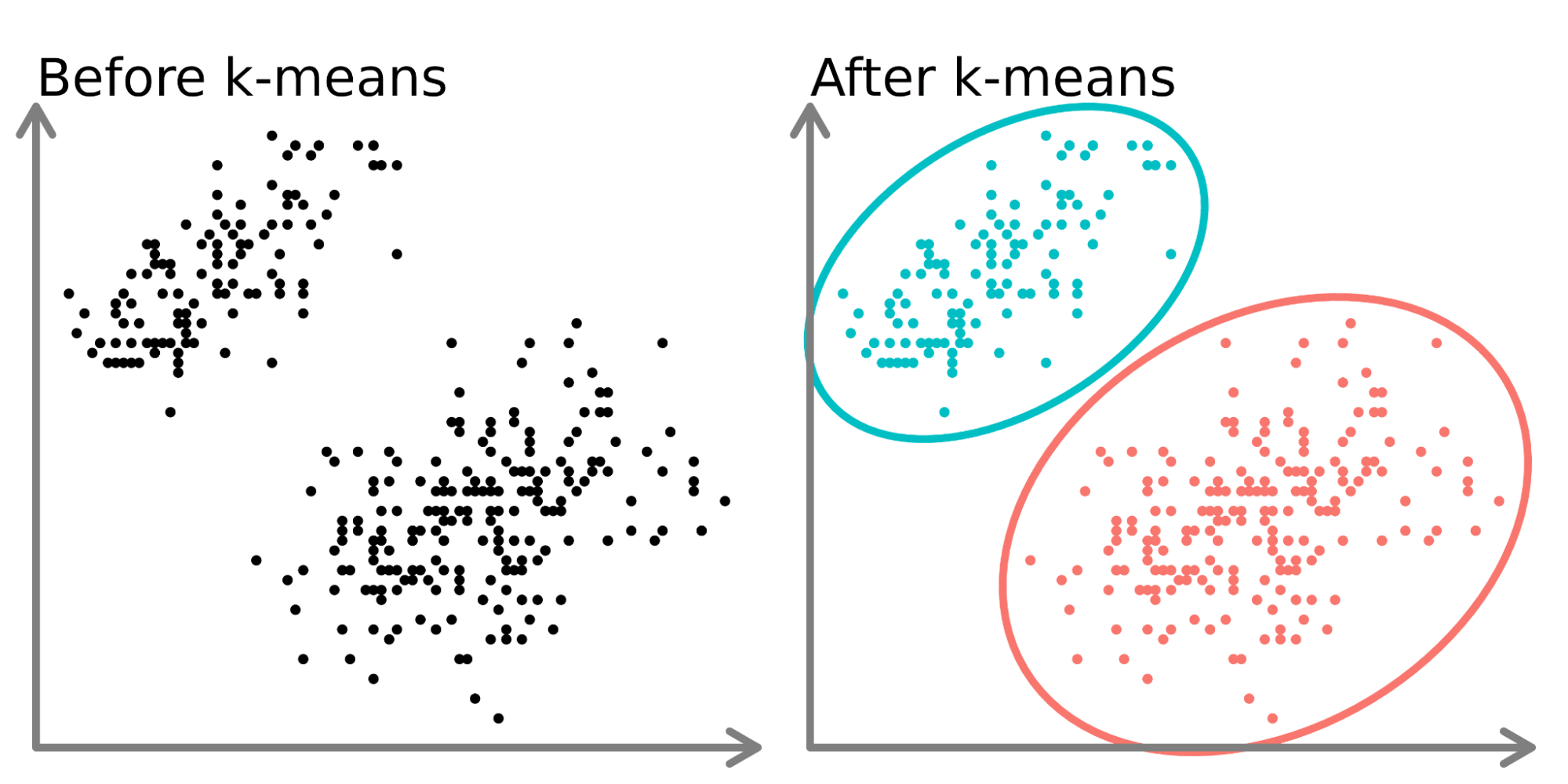

Figure 1: An Example of K-means Clustering

Steps in K-Means Algorithm

  1. Choose the number of clusters K.
  2. Select at random K points, the centroids(not necessarily from your dataset).
  3. Assign each data point to the closest centroid → that forms K clusters.
  4. Compute the mean of data points within a cluster and place the new centroid of each cluster.
  5. Reassign each data point to the new closest centroid. If any reassignment took place, go to step 4, otherwise, the model is ready.

How to Choose the Value of K?

There are different techniques available to find the optimal value of K. The most common technique is the elbow method.

Elbow Method

The elbow method is used to determine the optimal number of clusters in K-means clustering. The elbow method plots the value of the Within cluster sum of square of the data points(WCSS) produced by different values of K. Figure 2 shows how the elbow method works.

Distortion: It is calculated as the average of the squared distances from the cluster centers of the respective clusters to each data point. Typically, the Euclidean distance metric is used.

\[ Distortion = 1/n * \sum(distance(point, centroid)^2) \]

Inertia: It is the sum of the squared distances of samples to their closest cluster center.

\[ Inertia = \sum(distance(point, centroid)^2) \]

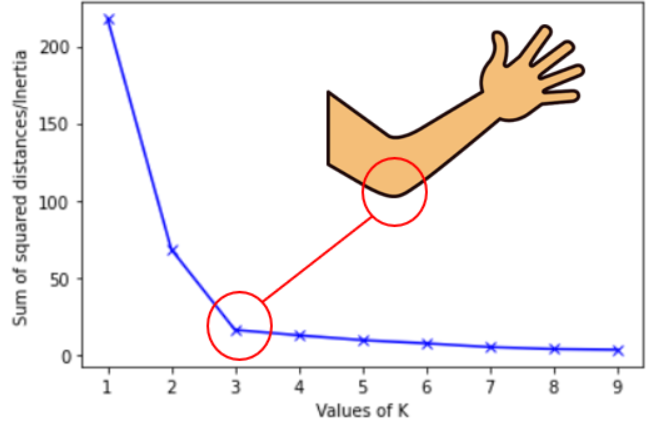

Figure 2: Elbow Method for Optimal K

We can see that if K increases, average distortion will decrease. We should choose that k where the distortion decline drastically. From the above diagram the best value of k will be 3.

Silhouette Score

Another method to find the optimal value of K is silhouette score. The silhouette score and plot are used to evaluate the quality of a clustering solution produced by the k-means algorithm. The silhouette score measures -

  1. How close the data point is to other points in the cluster

  2. How far away the data point is from points in other clusters

Silhouette coefficient values range between -1 and 1. Larger numbers indicate that samples are closer to their clusters than they are to other clusters. A silhouette score close to 0 suggests overlapping clusters, and a negative score suggests poor clustering solutions.

When will K-means Clustering Fail?

K-means clustering performs best on data that are spherical. Spherical data are data that group in space in close proximity to each other either. This can be visualized in 2 or 3 dimensional space more easily. Data that aren’t spherical or should not be spherical do not work well with k-means clustering. For example, k-means clustering would not do well on the below data (Figure 3) as we would not be able to find distinct centroids to cluster the two circles or arcs differently, despite them clearly visually being two distinct circles and arcs that should be labeled as such.

Figure 3: When K means is not working

Importing Python Libraries

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
import seaborn as sns

from sklearn.cluster import KMeans

from scipy.spatial.distance import cdist
from sklearn import metrics

import warnings
warnings.filterwarnings('ignore')

An Example of Clustering Using a Simulated Dataset

# Creating the data
x1 = np.array([3, 1, 1, 2, 1, 6, 6, 6, 5, 6,\
               7, 8, 9, 8, 9, 9, 8, 4, 4, 5, 4])
x2 = np.array([5, 4, 5, 6, 5, 8, 6, 7, 6, 7, \
               1, 2, 1, 2, 3, 2, 3, 9, 10, 9, 10])
X = np.array(list(zip(x1, x2))).reshape(len(x1), 2)

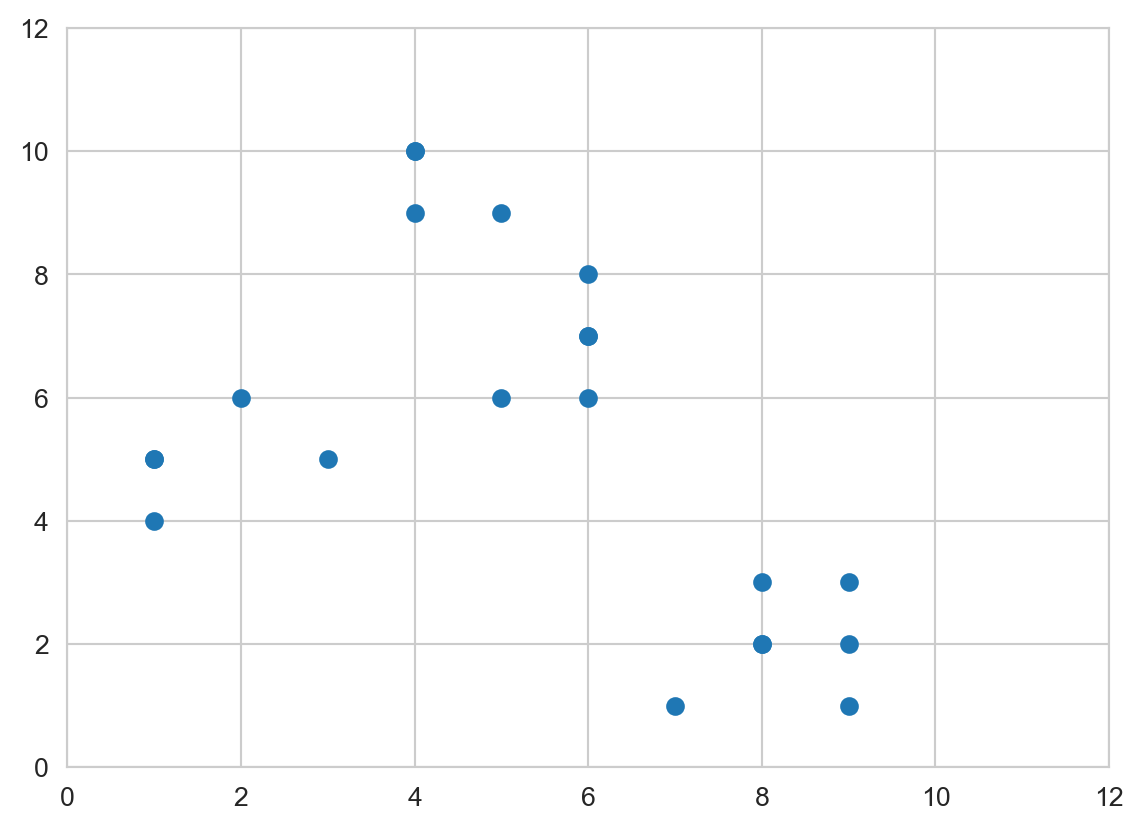

# Visualizing the data
sns.set_style('whitegrid')
plt.plot()
plt.xlim([0, 12])
plt.ylim([0, 12])
#plt.title('Dataset')
plt.scatter(x1, x2)
plt.show()

distortions = []
inertias = []
mapping1 = {}
mapping2 = {}
K = range(1, 10)

for k in K:
    # Building and fitting the model
    kmeanModel = KMeans(n_clusters=k).fit(X)
    kmeanModel.fit(X)

    distortions.append(sum(np.min(cdist(X, kmeanModel.cluster_centers_,
                                        'euclidean'), axis=1)) / X.shape[0])
    inertias.append(kmeanModel.inertia_)

    mapping1[k] = sum(np.min(cdist(X, kmeanModel.cluster_centers_,
                                   'euclidean'), axis=1)) / X.shape[0]
    mapping2[k] = kmeanModel.inertia_

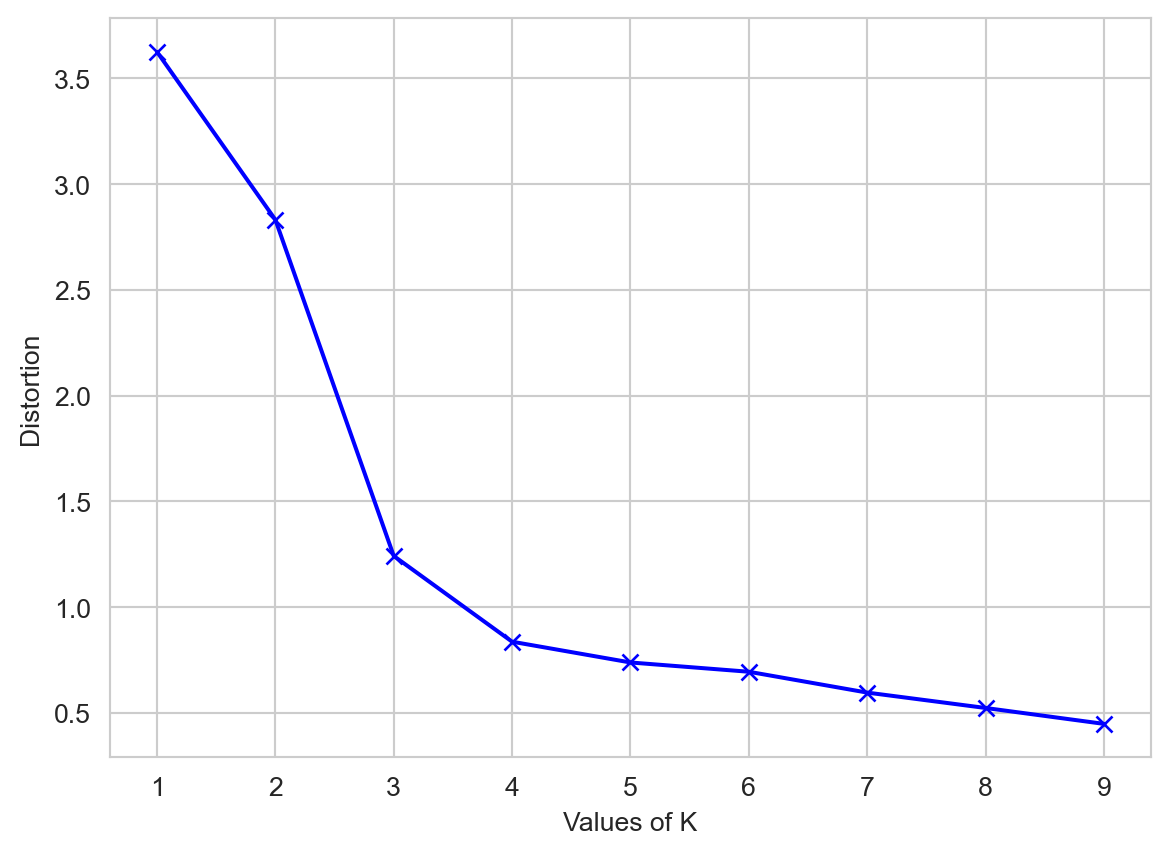

Please see Figure 4 to see elbow method using distortion

sns.set_style('whitegrid')
plt.plot(K, distortions, 'bx-')
plt.xlabel('Values of K')
plt.ylabel('Distortion')
#plt.title('The Elbow Method using Distortion')
plt.show()
Figure 4: The Elbow Method using Distortion

Please see Figure 5 to see elbow method using inertia

sns.set_style('whitegrid')
plt.plot(K, inertias, 'bx-')
plt.xlabel('Values of K')
plt.ylabel('Inertia')
#plt.title('The Elbow Method using Inertia')
plt.show()

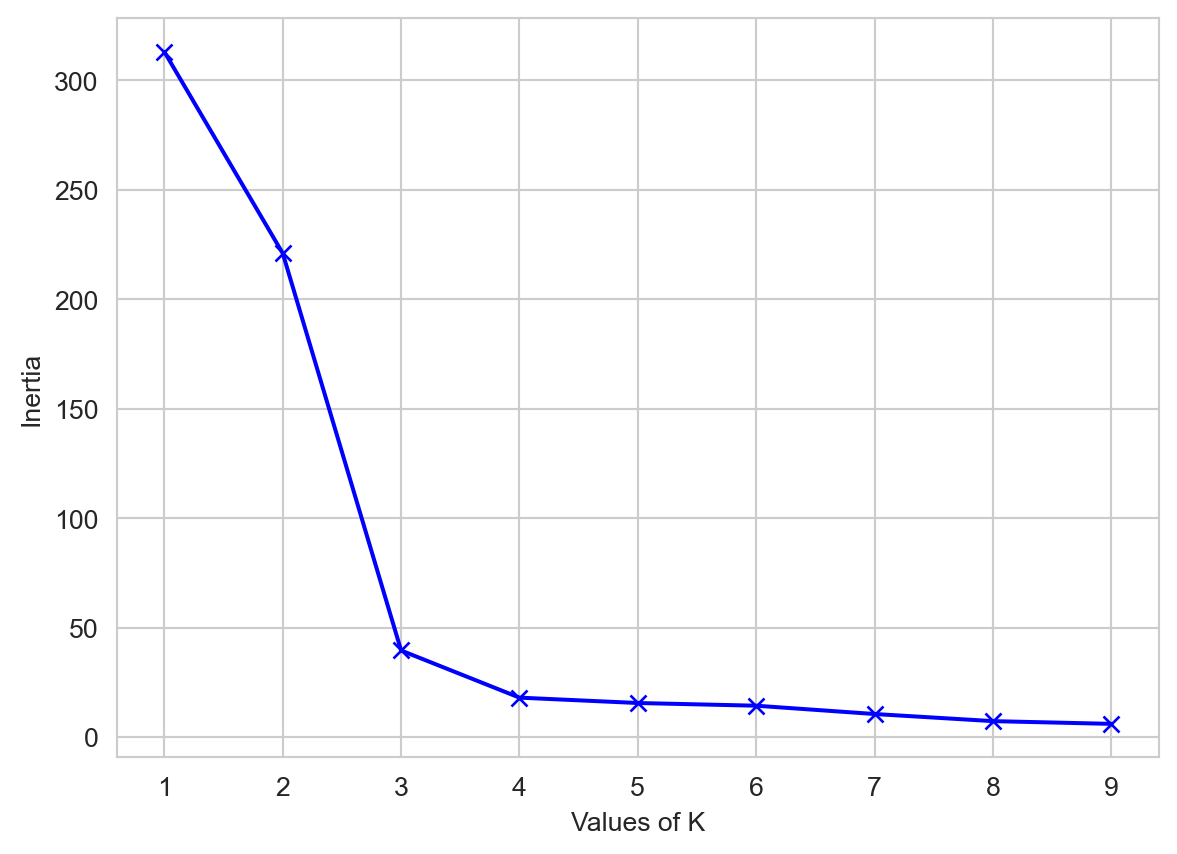

Figure 5: The Elbow Method using Inertia

Please see Figure 6 for Silhouette Score.

 # A list holds the silhouette coefficients for each k
kmeans_kwargs = {
        "init": "random",
        "n_init": 10,
        "max_iter": 300,
        "random_state": 42,
    }

silhouette_coefficients = []

# Notice you start at 2 clusters for silhouette coefficient
from sklearn.metrics import silhouette_score

for k in range(2, 11):
   kmeans = KMeans(n_clusters=k,**kmeans_kwargs)
   kmeans.fit(X)
   score = silhouette_score(X, kmeans.labels_)
   silhouette_coefficients.append(score)
plt.style.use("fivethirtyeight")
plt.plot(range(2, 11), silhouette_coefficients)
plt.xticks(range(2, 11))
plt.xlabel("Number of Clusters")
plt.ylabel("Silhouette Coefficient")
plt.show()

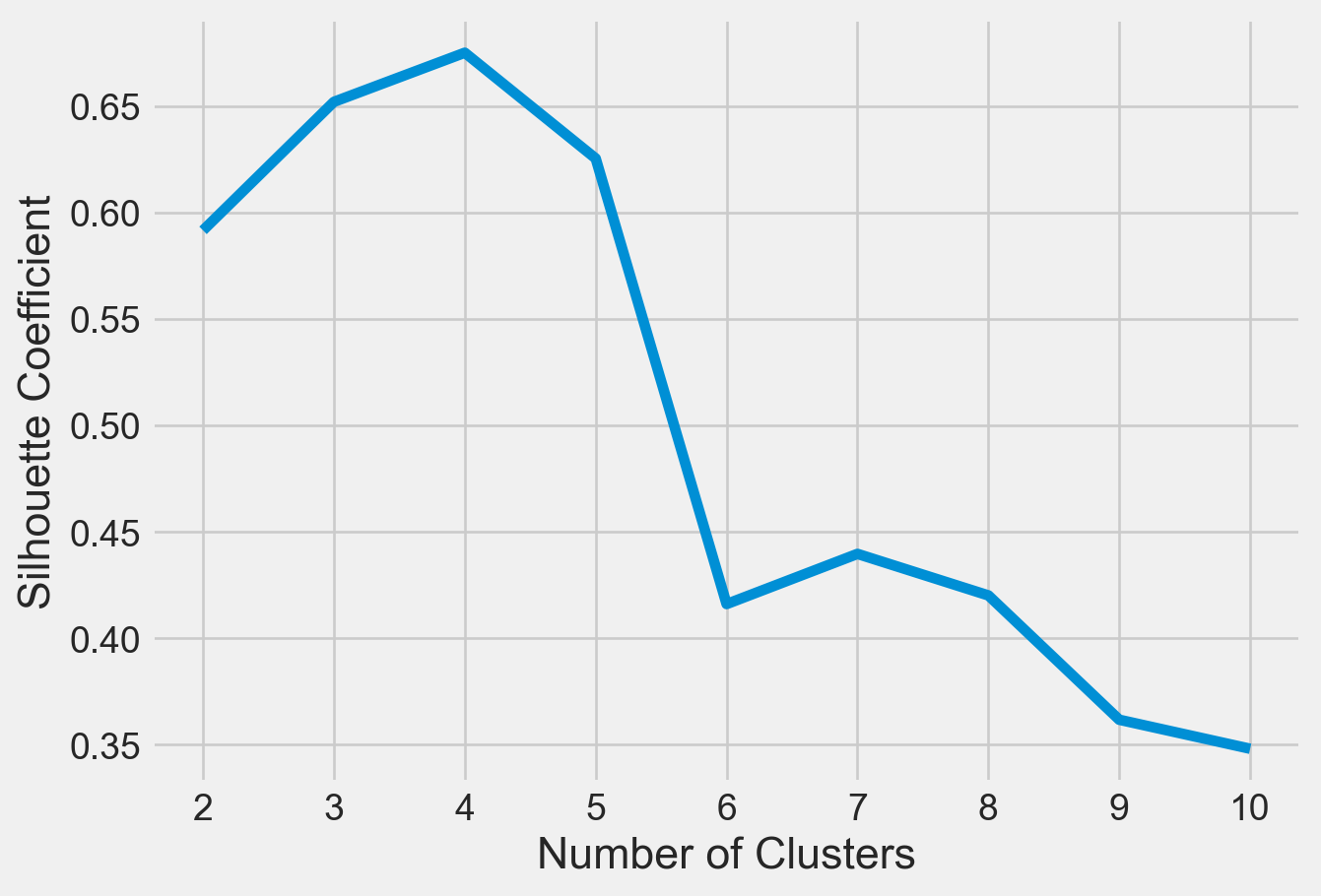

Figure 6: The Silhouette Score for Optimal K

Clustered Data Points For Different K Values

Please see Figure 7 for different clusters based on different values of K

# Create a range of values for k
k_range = range(1, 5)

# Initialize an empty list to
# store the inertia values for each k
inertia_values = []

# Fit and plot the data for each k value
for k in k_range:
    kmeans = KMeans(n_clusters=k, \
                    init='k-means++', random_state=42)
    y_kmeans = kmeans.fit_predict(X)
    inertia_values.append(kmeans.inertia_)
    plt.scatter(X[:, 0], X[:, 1], c=y_kmeans)
    plt.scatter(kmeans.cluster_centers_[:, 0],\
                kmeans.cluster_centers_[:, 1], \
                s=100, c='red')
    #plt.title('K-means clustering (k={})'.format(k))
    plt.xlabel('Feature 1')
    plt.ylabel('Feature 2')
    plt.show()

# Plot the inertia values for each k
plt.plot(k_range, inertia_values, 'bo-')
#plt.title('Elbow Method')
plt.xlabel('Number of clusters (k)')
plt.ylabel('Inertia')
plt.show()

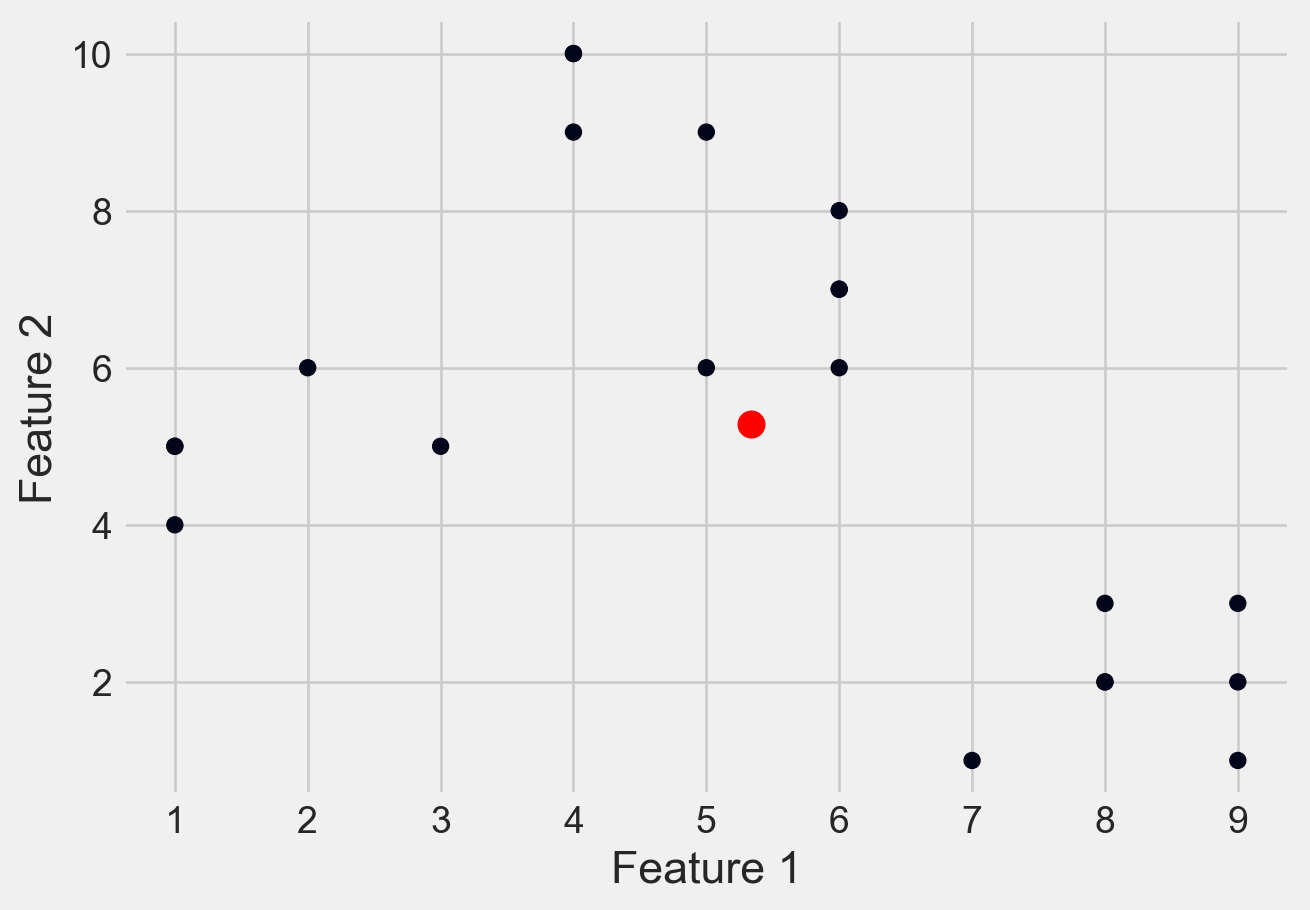

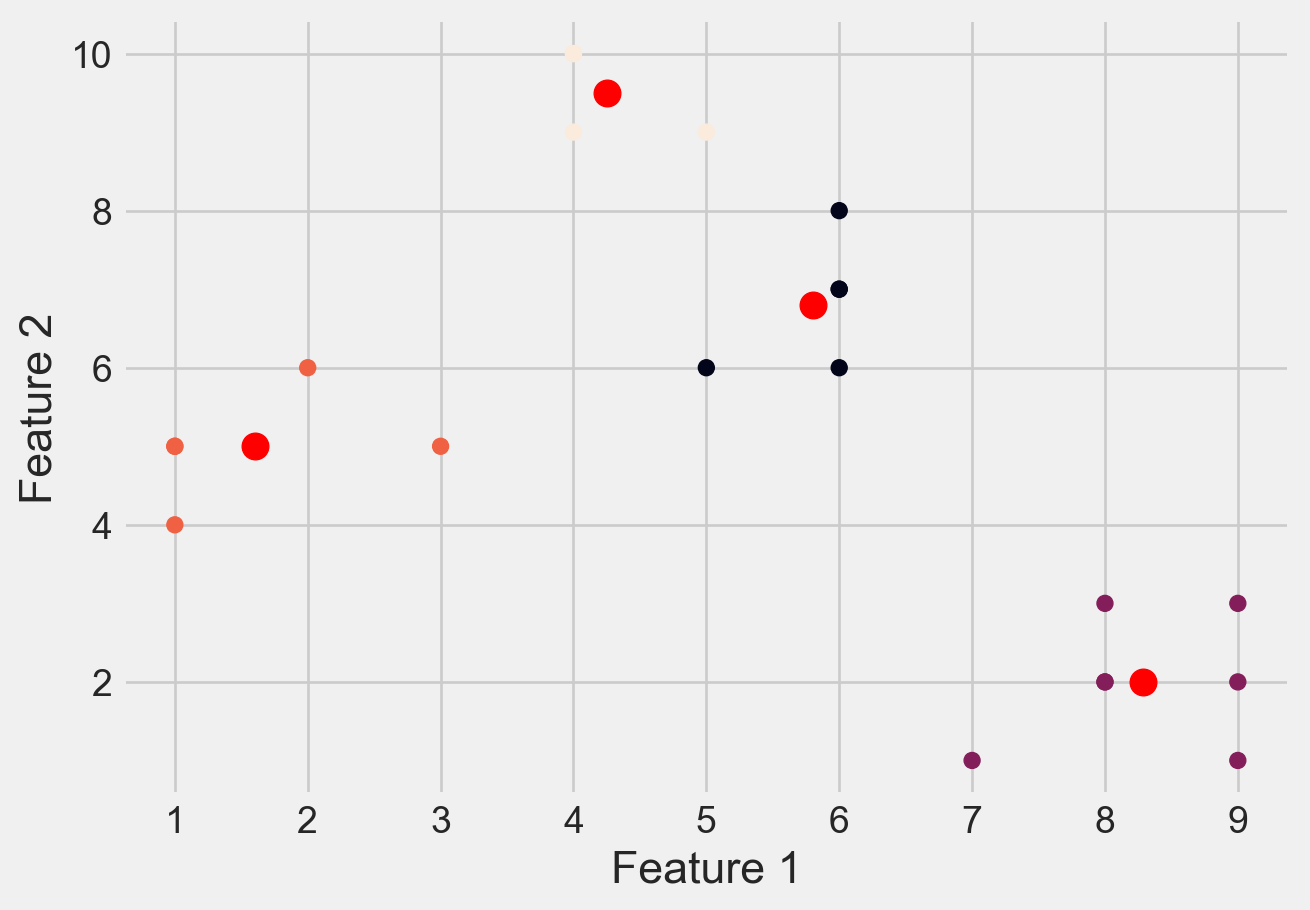

(a) Number of Cluster K = 1

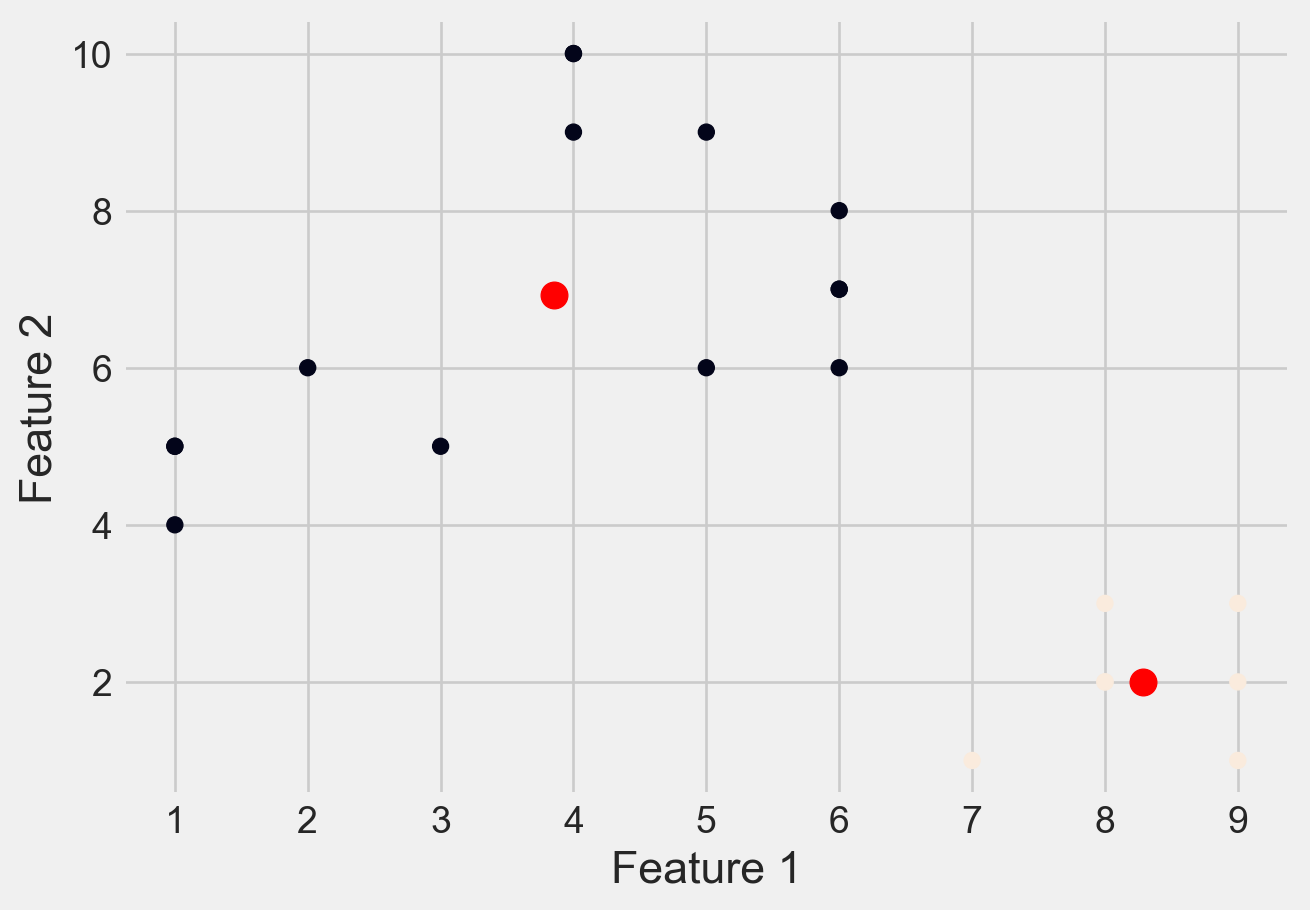

(b) Number of Cluster K = 2

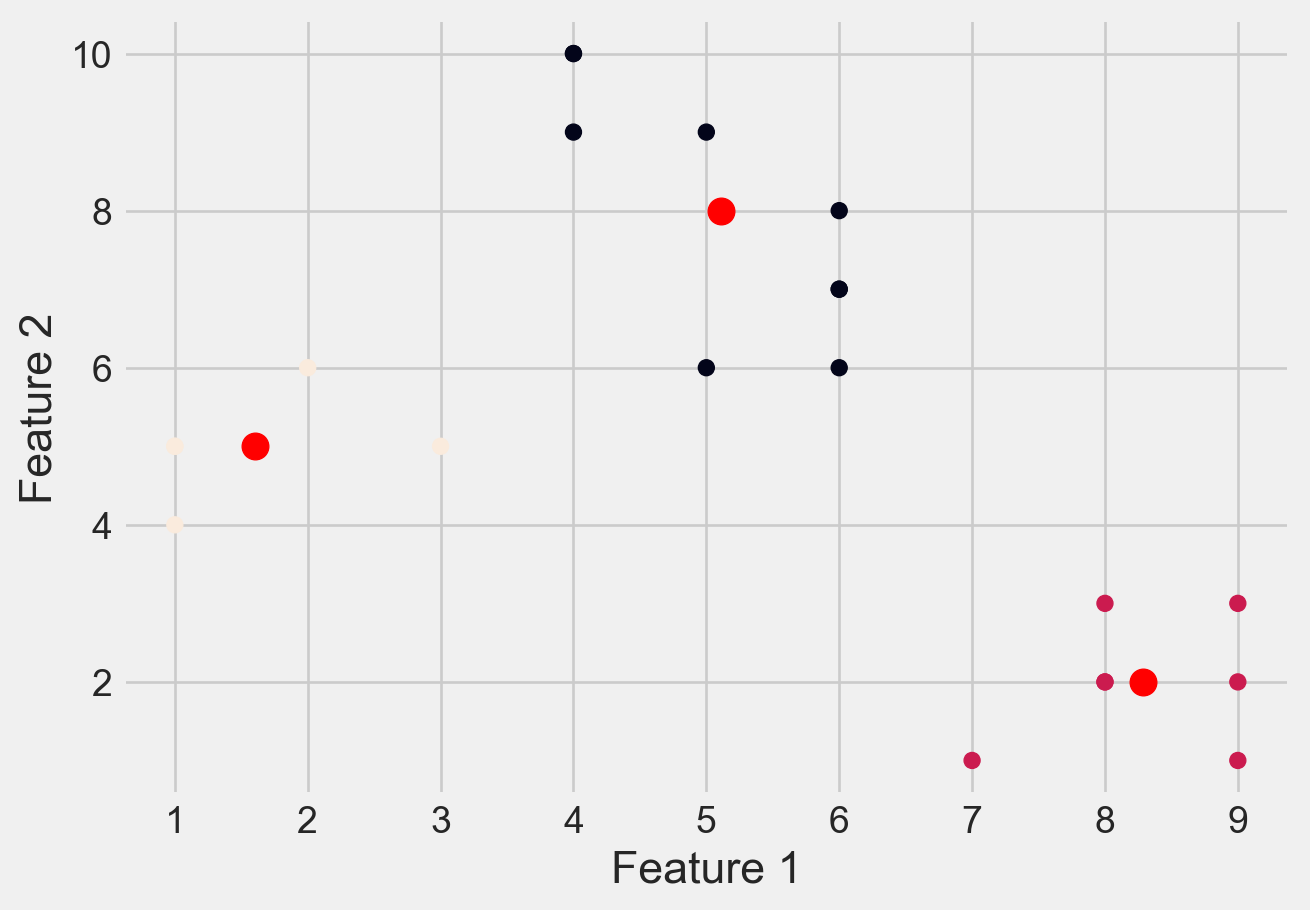

(c) Number of Cluster K = 3
(d) Number of Cluster K = 4

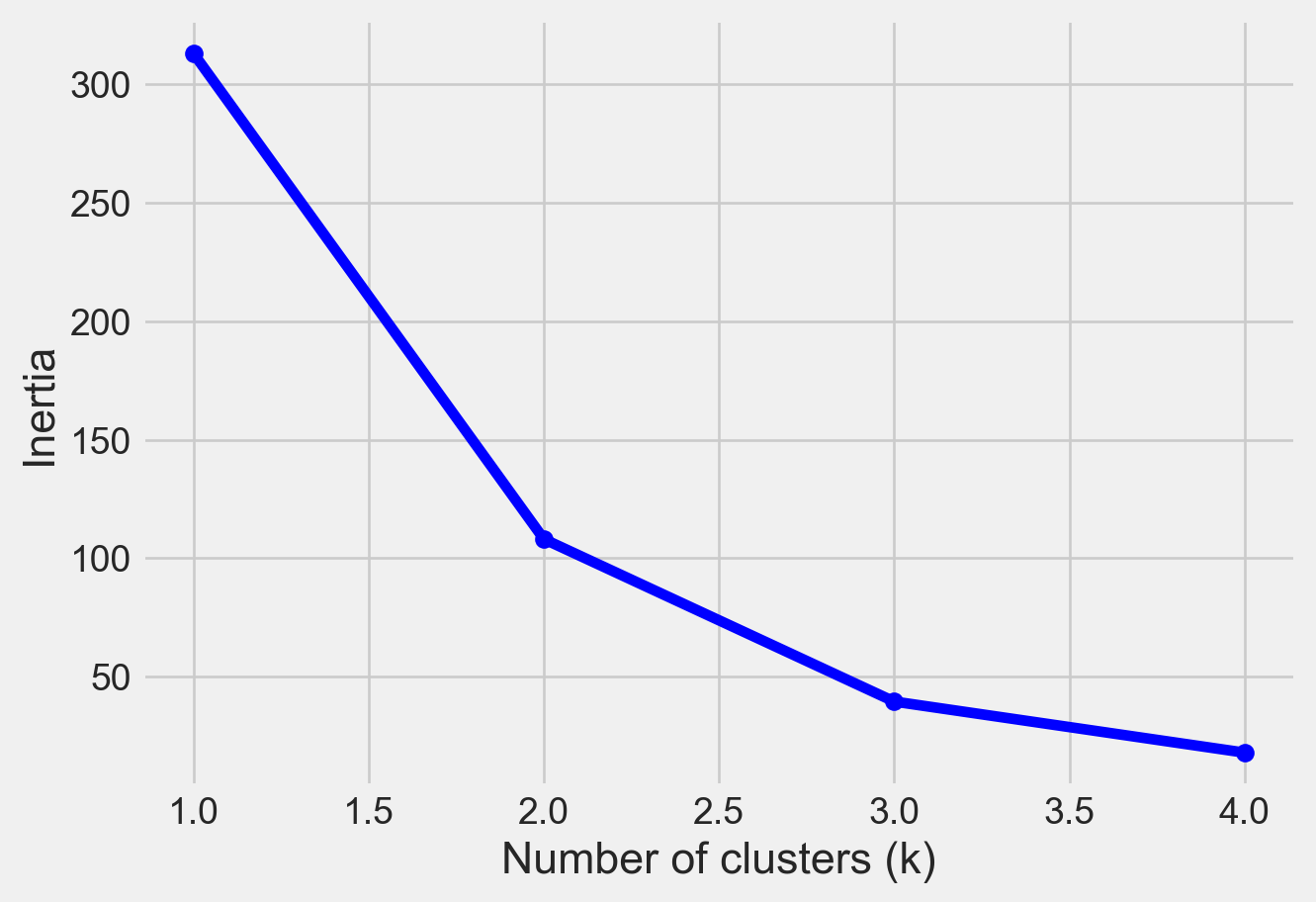

(e) Elbow Method
Figure 7: Clustering Using Different K Values

Loading Dataset

df = pd.read_csv('DATA/Mall_Customers.csv')

Metadata of the Dataset

# first few rows
df.head()
CustomerID Gender Age Annual Income (k$) Spending Score (1-100)
0 1 Male 19 15 39
1 2 Male 21 15 81
2 3 Female 20 16 6
3 4 Female 23 16 77
4 5 Female 31 17 40
# size of datset
df.shape
(200, 5)
# summary about dataset
df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 200 entries, 0 to 199
Data columns (total 5 columns):
 #   Column                  Non-Null Count  Dtype
---  ------                  --------------  -----
 0   CustomerID              200 non-null    int64
 1   Gender                  200 non-null    object
 2   Age                     200 non-null    int64
 3   Annual Income (k$)      200 non-null    int64
 4   Spending Score (1-100)  200 non-null    int64
dtypes: int64(4), object(1)
memory usage: 7.9+ KB
df.isnull().sum()
CustomerID                0
Gender                    0
Age                       0
Annual Income (k$)        0
Spending Score (1-100)    0
dtype: int64
df.describe()
CustomerID Age Annual Income (k$) Spending Score (1-100)
count 200.000000 200.000000 200.000000 200.000000
mean 100.500000 38.850000 60.560000 50.200000
std 57.879185 13.969007 26.264721 25.823522
min 1.000000 18.000000 15.000000 1.000000
25% 50.750000 28.750000 41.500000 34.750000
50% 100.500000 36.000000 61.500000 50.000000
75% 150.250000 49.000000 78.000000 73.000000
max 200.000000 70.000000 137.000000 99.000000
df.describe().T
count mean std min 25% 50% 75% max
CustomerID 200.0 100.50 57.879185 1.0 50.75 100.5 150.25 200.0
Age 200.0 38.85 13.969007 18.0 28.75 36.0 49.00 70.0
Annual Income (k$) 200.0 60.56 26.264721 15.0 41.50 61.5 78.00 137.0
Spending Score (1-100) 200.0 50.20 25.823522 1.0 34.75 50.0 73.00 99.0

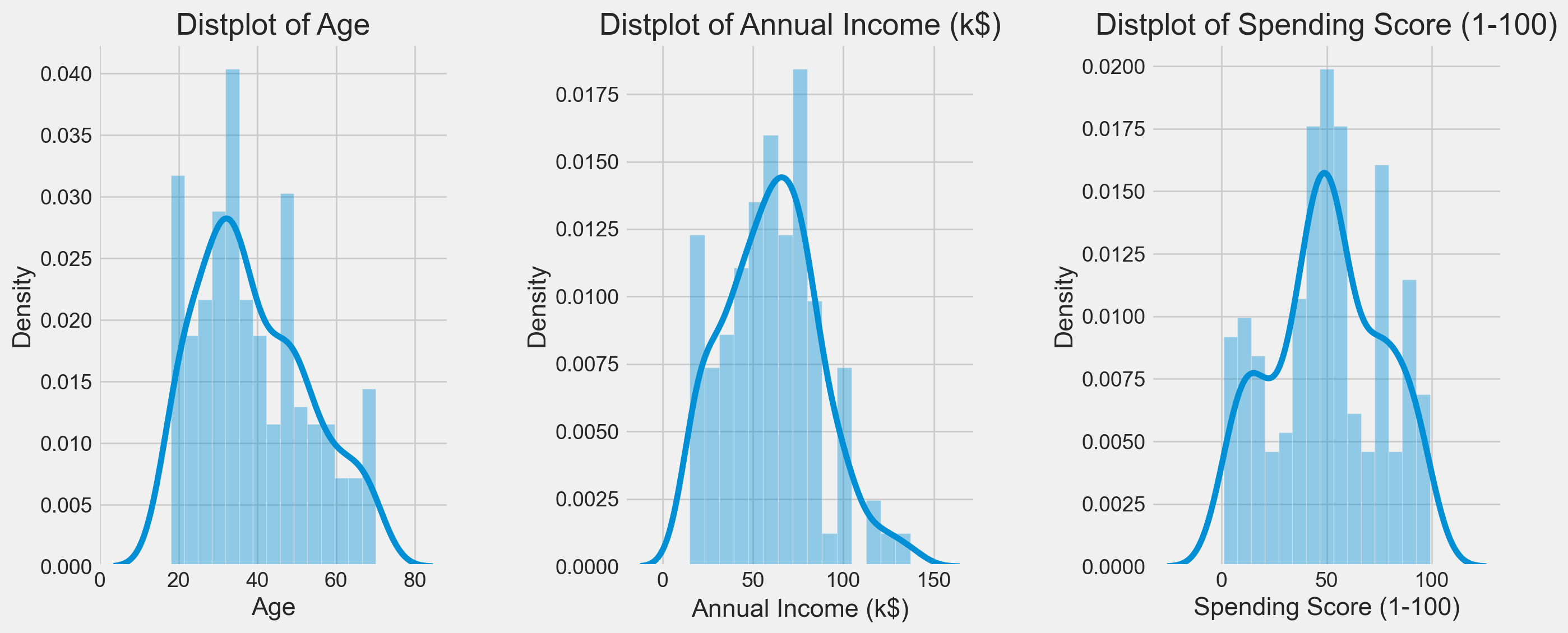

Exploratory Analysis

plt.figure(1 , figsize = (15 , 6))
n = 0
for x in ['Age' , 'Annual Income (k$)' , 'Spending Score (1-100)']:
    n += 1
    plt.subplot(1 , 3 , n)
    plt.subplots_adjust(hspace = 0.5 , wspace = 0.5)
    sns.distplot(df[x] , bins = 15)
    plt.title('Distplot of {}'.format(x))
plt.show()

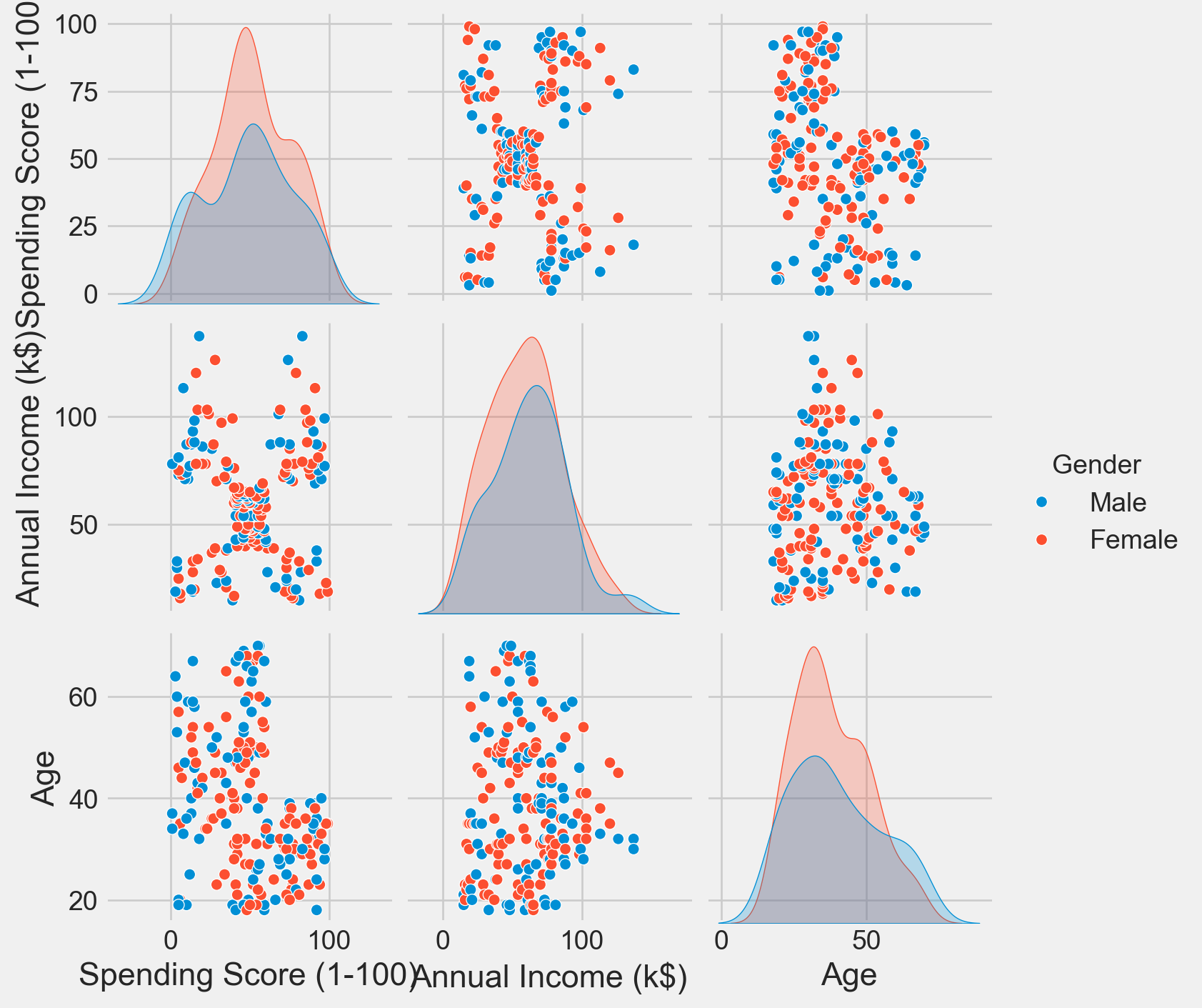

sns.pairplot(df, vars = ['Spending Score (1-100)', 'Annual Income (k$)', 'Age'], hue = "Gender")
plt.show()

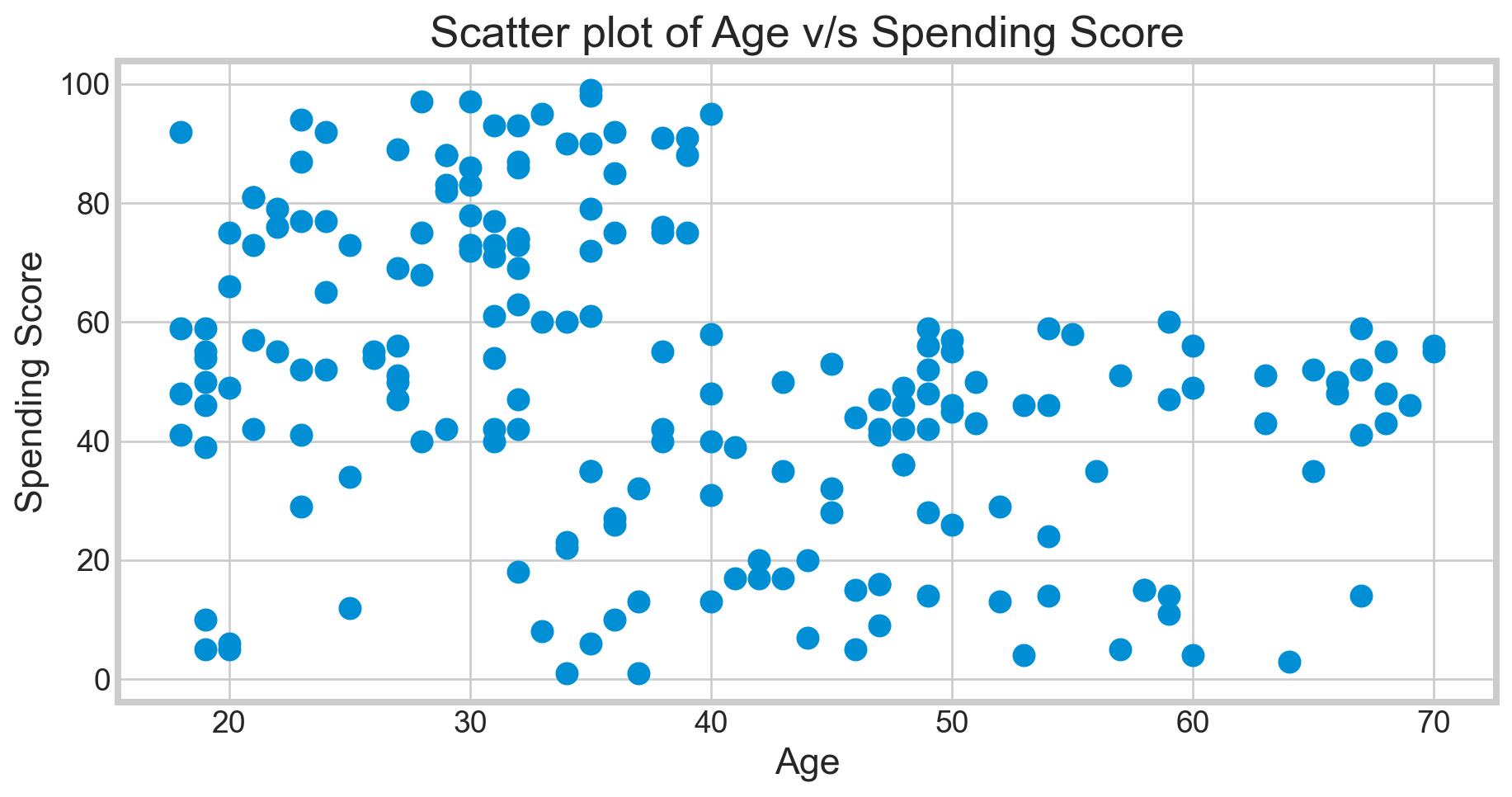

Clustering Based on Age and Spending Score

sns.set_style('whitegrid')
plt.figure(1 , figsize = (10 , 5))
plt.title('Scatter plot of Age v/s Spending Score', fontsize = 20)
plt.xlabel('Age')
plt.ylabel('Spending Score')
plt.scatter( x = 'Age', y = 'Spending Score (1-100)', data = df, s = 100)
plt.show()

Deciding K Value

X1 = df[['Age' , 'Spending Score (1-100)']].iloc[: , :].values
inertia = []
for n in range(1 , 15):
    algorithm = (KMeans(n_clusters = n ,init='k-means++', n_init = 10 ,max_iter=300,
                        tol=0.0001,  random_state= 111  , algorithm='elkan') )
    algorithm.fit(X1)
    inertia.append(algorithm.inertia_)

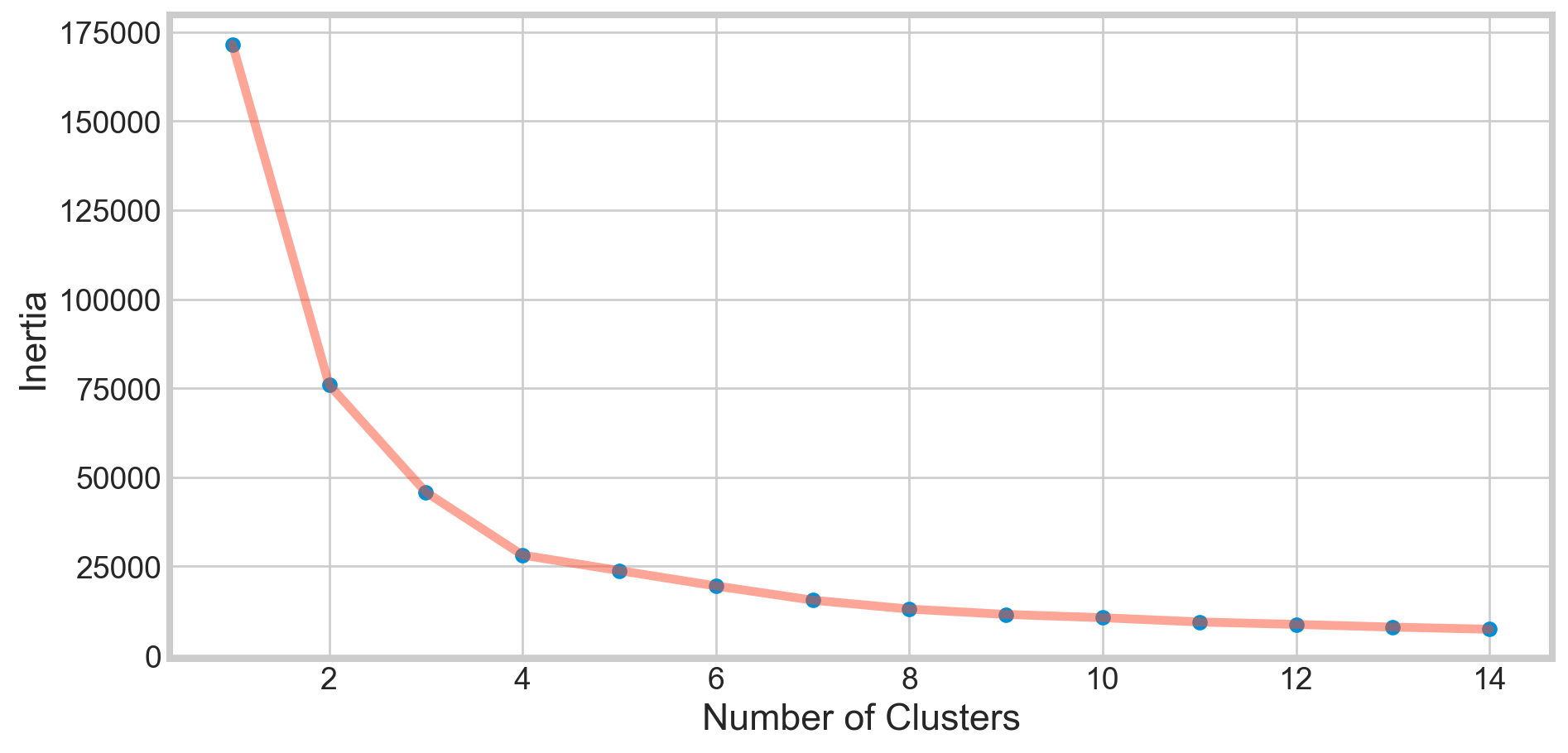

plt.figure(1 , figsize = (10,5))
plt.plot(np.arange(1 , 15) , inertia , 'o')
plt.plot(np.arange(1 , 15) , inertia , '-' , alpha = 0.5)
plt.xlabel('Number of Clusters') , plt.ylabel('Inertia')
plt.show()

  • The KMeans algorithm clusters data by trying to separate samples in n groups of equal variances, minimizing a criterion known as inertia, or within-cluster sum-of-squares Inertia, or the within-cluster sum of squares criterion, can be recognized as a measure of how internally coherent clusters are.

  • The k-means algorithm divides a set of N samples into K disjoint clusters C, each described by the mean j of the samples in the cluster. The means are commonly called the cluster centroids.

  • The K-means algorithm aims to choose centroids that minimize the inertia, or within-cluster sum of squared criterion.

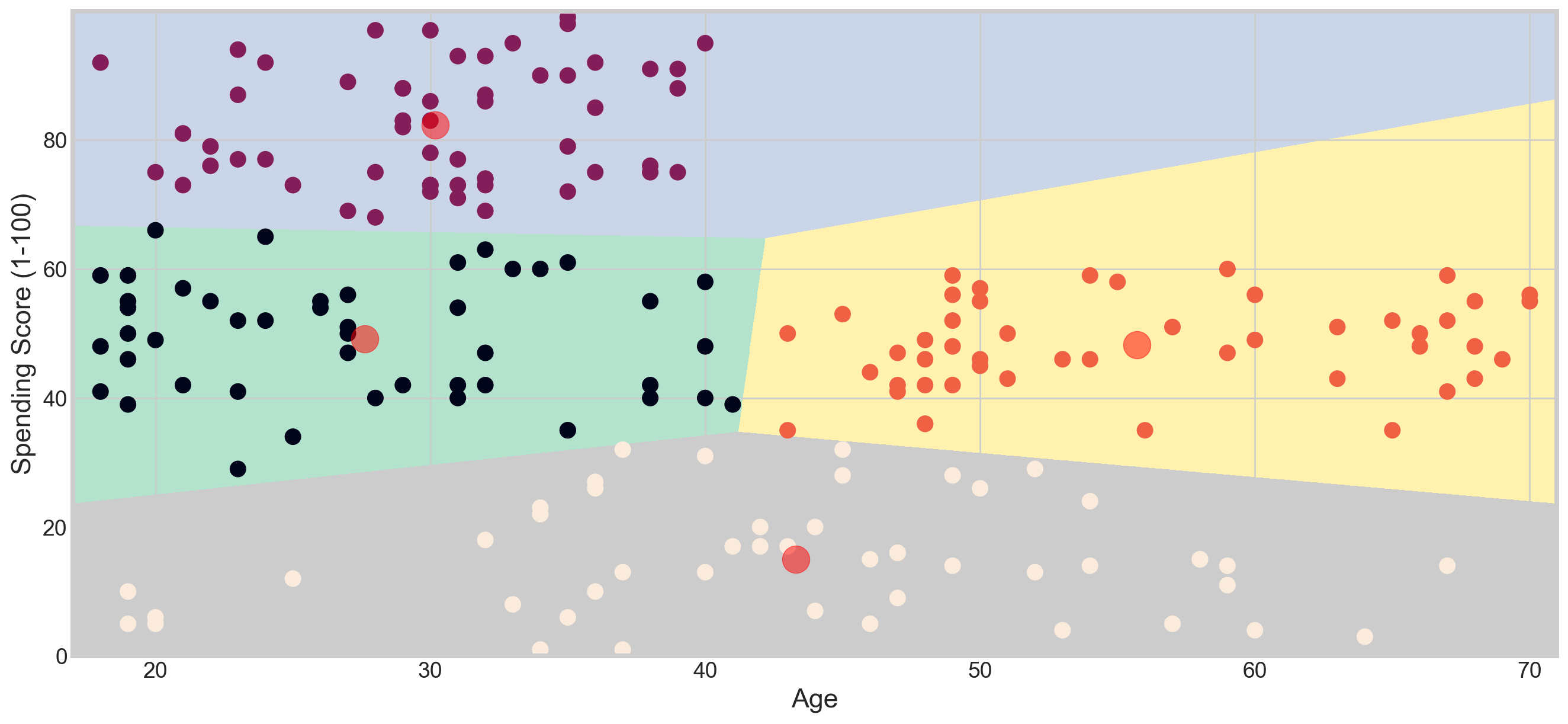

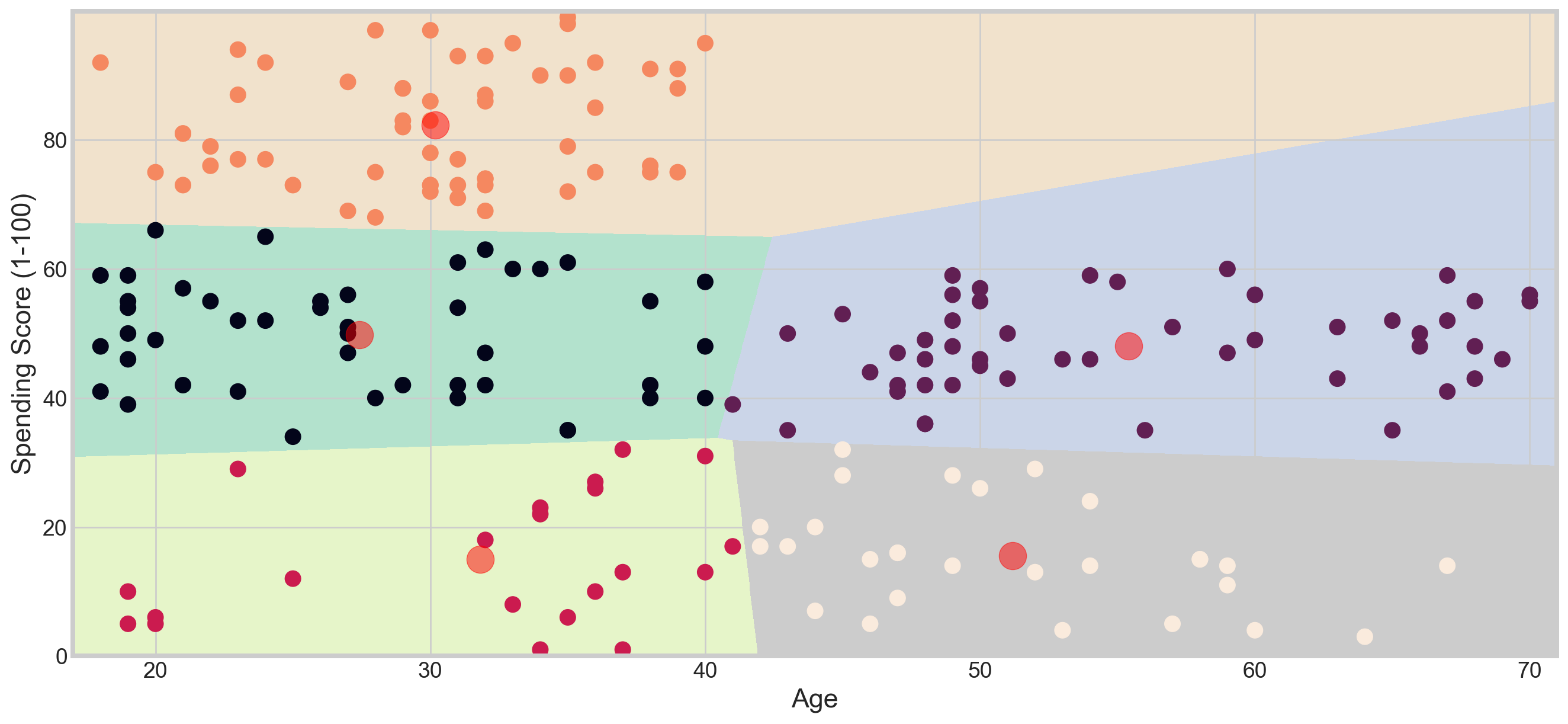

Applying KMeans for K = 4

algorithm = (KMeans(n_clusters = 4 ,init='k-means++', n_init = 10 ,max_iter=300,
                        tol=0.0001,  random_state= 111  , algorithm='elkan') )
algorithm.fit(X1)
labels1 = algorithm.labels_
centroids1 = algorithm.cluster_centers_
h = 0.02
x_min, x_max = X1[:, 0].min() - 1, X1[:, 0].max() + 1
y_min, y_max = X1[:, 1].min() - 1, X1[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))
Z = algorithm.predict(np.c_[xx.ravel(), yy.ravel()])
plt.figure(1 , figsize = (15 , 7) )
plt.clf()
Z = Z.reshape(xx.shape)
plt.imshow(Z , interpolation='nearest',
           extent=(xx.min(), xx.max(), yy.min(), yy.max()),
           cmap = plt.cm.Pastel2, aspect = 'auto', origin='lower')

plt.scatter( x = 'Age', y = 'Spending Score (1-100)', data = df, c = labels1, s = 100)
plt.scatter(x = centroids1[: , 0] , y =  centroids1[: , 1] , s = 300 , c = 'red' , alpha = 0.5)
plt.ylabel('Spending Score (1-100)') , plt.xlabel('Age')
plt.show()

Applying KMeans for K = 5

algorithm = (KMeans(n_clusters = 5, init='k-means++', n_init = 10, max_iter=300,
                        tol=0.0001, random_state= 111 , algorithm='elkan'))
algorithm.fit(X1)
labels1 = algorithm.labels_
centroids1 = algorithm.cluster_centers_
h = 0.02
x_min, x_max = X1[:, 0].min() - 1, X1[:, 0].max() + 1
y_min, y_max = X1[:, 1].min() - 1, X1[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))
Z = algorithm.predict(np.c_[xx.ravel(), yy.ravel()])
plt.figure(1 , figsize = (15 , 7) )
plt.clf()
Z = Z.reshape(xx.shape)
plt.imshow(Z , interpolation='nearest',
           extent=(xx.min(), xx.max(), yy.min(), yy.max()),
           cmap = plt.cm.Pastel2, aspect = 'auto', origin='lower')

plt.scatter( x = 'Age', y = 'Spending Score (1-100)', data = df, c = labels1, s = 100)
plt.scatter(x = centroids1[: , 0] , y =  centroids1[: , 1] , s = 300 , c = 'red' , alpha = 0.5)
plt.ylabel('Spending Score (1-100)') , plt.xlabel('Age')
plt.show()

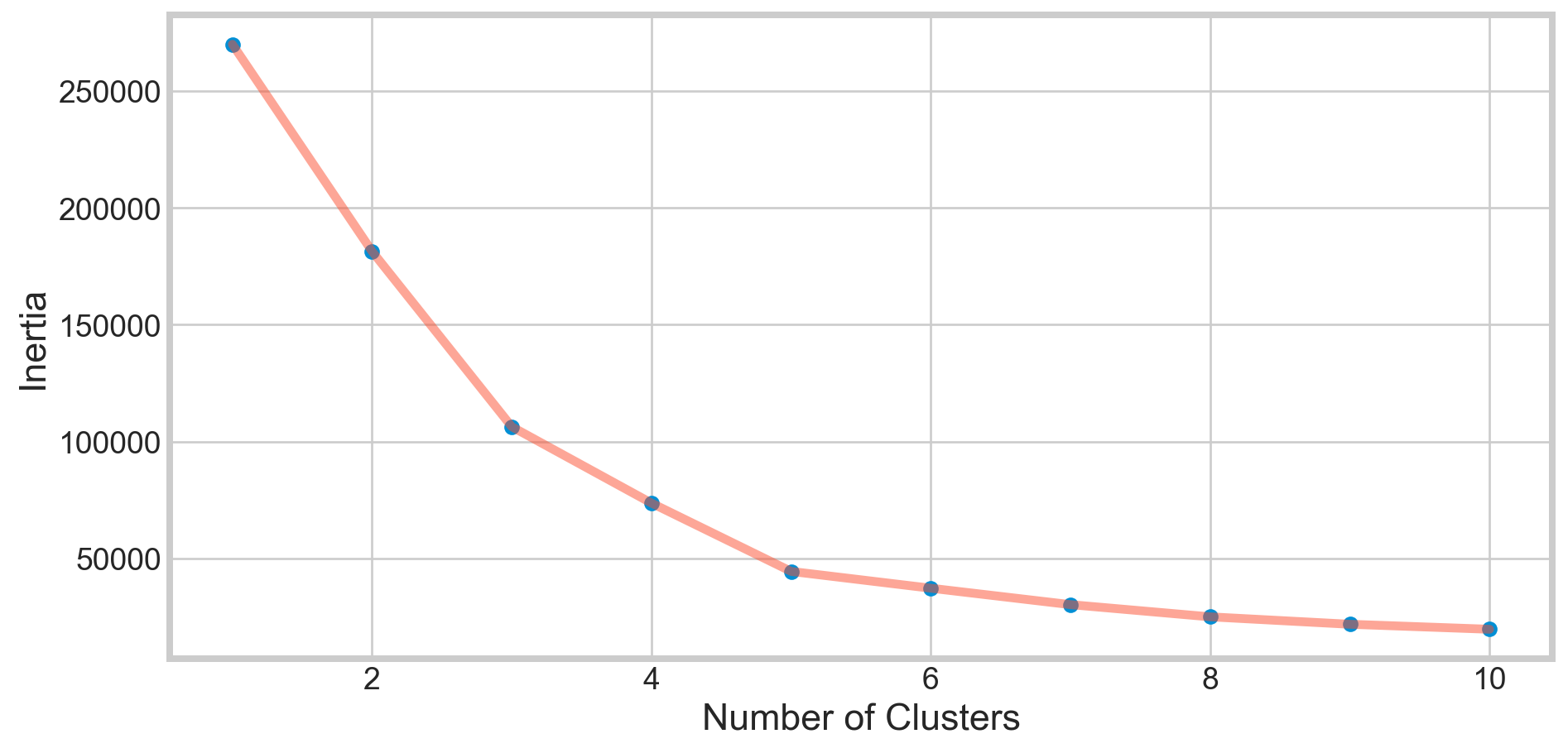

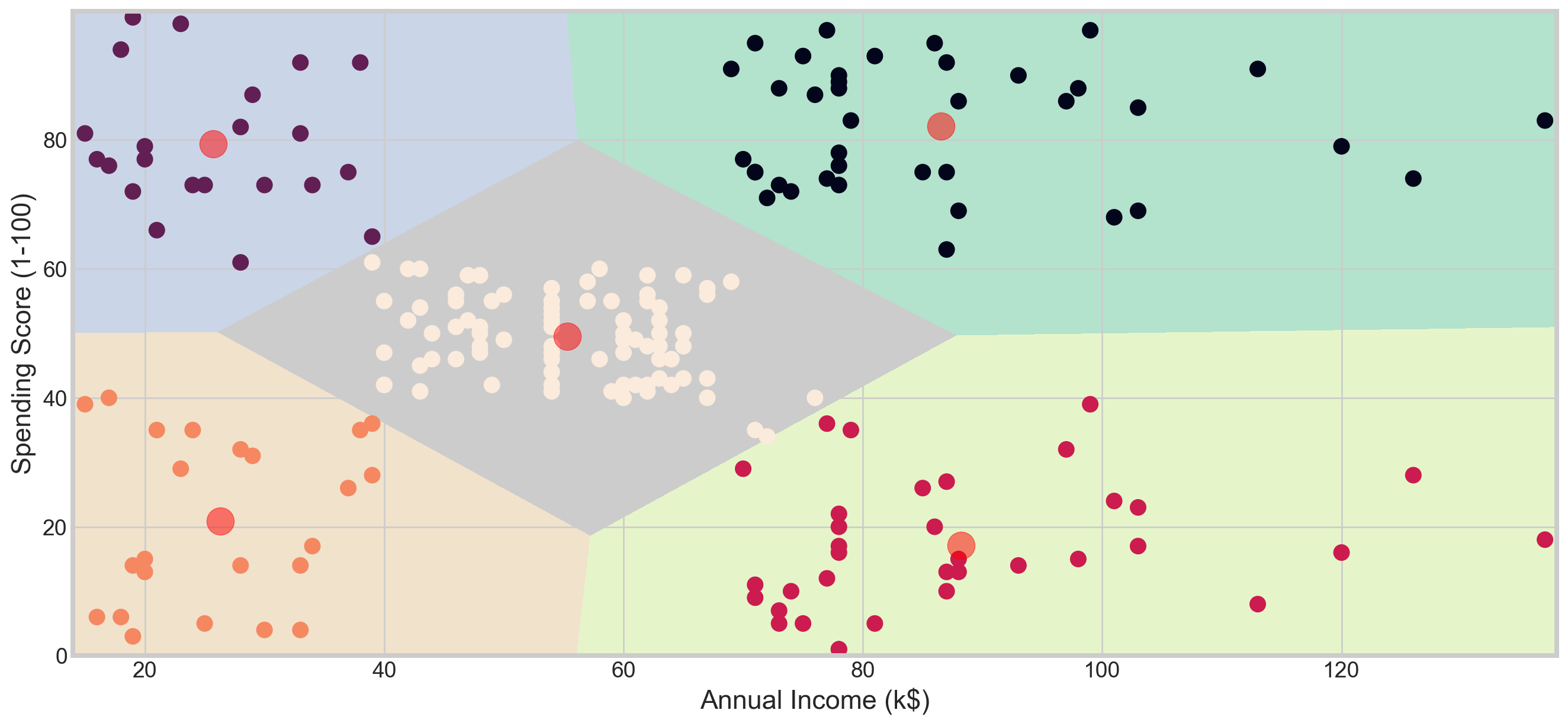

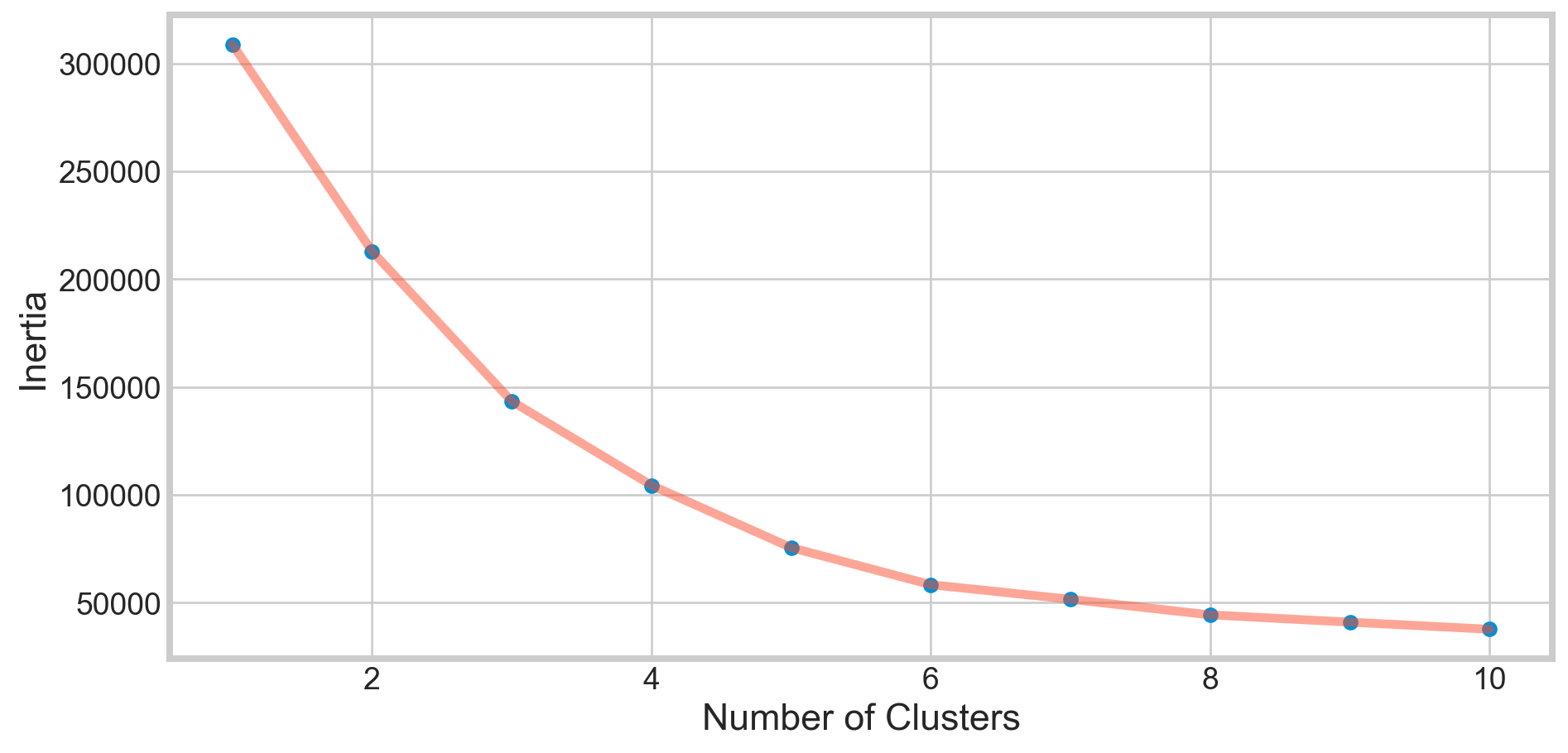

Clustering Based on Annual Income and Spending Score

X2 = df[['Annual Income (k$)' , 'Spending Score (1-100)']].iloc[: , :].values
inertia = []
for n in range(1 , 11):
    algorithm = (KMeans(n_clusters = n ,init='k-means++', n_init = 10 ,max_iter=300,
                        tol=0.0001,  random_state= 111  , algorithm='elkan') )
    algorithm.fit(X2)
    inertia.append(algorithm.inertia_)
plt.figure(1 , figsize = (10,5))
plt.plot(np.arange(1 , 11) , inertia , 'o')
plt.plot(np.arange(1 , 11) , inertia , '-' , alpha = 0.5)
plt.xlabel('Number of Clusters') , plt.ylabel('Inertia')
plt.show()

algorithm = (KMeans(n_clusters = 5 ,init='k-means++', n_init = 10 ,max_iter=300,
                        tol=0.0001,  random_state= 111  , algorithm='elkan') )
algorithm.fit(X2)
labels2 = algorithm.labels_
centroids2 = algorithm.cluster_centers_
h = 0.02
x_min, x_max = X2[:, 0].min() - 1, X2[:, 0].max() + 1
y_min, y_max = X2[:, 1].min() - 1, X2[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))
Z2 = algorithm.predict(np.c_[xx.ravel(), yy.ravel()])
plt.figure(1 , figsize = (15 , 7) )
plt.clf()
Z2 = Z2.reshape(xx.shape)
plt.imshow(Z2 , interpolation='nearest',
           extent=(xx.min(), xx.max(), yy.min(), yy.max()),
           cmap = plt.cm.Pastel2, aspect = 'auto', origin='lower')

plt.scatter( x = 'Annual Income (k$)' ,y = 'Spending Score (1-100)' , data = df , c = labels2 ,
            s = 100 )
plt.scatter(x = centroids2[: , 0] , y =  centroids2[: , 1] , s = 300 , c = 'red' , alpha = 0.5)
plt.ylabel('Spending Score (1-100)') , plt.xlabel('Annual Income (k$)')
plt.show()

Clustering Age, Annual Income, and Spending Score

X3 = df[['Age' , 'Annual Income (k$)' ,'Spending Score (1-100)']].iloc[: , :].values
inertia = []
for n in range(1 , 11):
    algorithm = (KMeans(n_clusters = n, init='k-means++', n_init = 10, max_iter=300,
                        tol=0.0001, random_state= 111, algorithm='elkan'))
    algorithm.fit(X3)
    inertia.append(algorithm.inertia_)
plt.figure(1 , figsize = (10,5))
plt.plot(np.arange(1 , 11) , inertia , 'o')
plt.plot(np.arange(1 , 11) , inertia , '-' , alpha = 0.5)
plt.xlabel('Number of Clusters') , plt.ylabel('Inertia')
plt.show()

algorithm = (KMeans(n_clusters = 6 ,init='k-means++', n_init = 10 ,max_iter=300,
                        tol=0.0001,  random_state= 111  , algorithm='elkan') )
algorithm.fit(X3)
labels3 = algorithm.labels_
centroids3 = algorithm.cluster_centers_

y_kmeans = algorithm.fit_predict(X3)
df['cluster'] = pd.DataFrame(y_kmeans)
df.head()
CustomerID Gender Age Annual Income (k$) Spending Score (1-100) cluster
0 1 Male 19 15 39 4
1 2 Male 21 15 81 5
2 3 Female 20 16 6 4
3 4 Female 23 16 77 5
4 5 Female 31 17 40 4
import plotly as py
import plotly.graph_objs as go

trace1 = go.Scatter3d(
    x= df['Age'],
    y= df['Spending Score (1-100)'],
    z= df['Annual Income (k$)'],
    mode='markers',
     marker=dict(
        color = df['cluster'],
        size= 10,
        line=dict(
            color= df['cluster'],
            width= 12
        ),
        opacity=0.8
     )
)
data = [trace1]
layout = go.Layout(
    title= 'Clusters wrt Age, Income and Spending Scores',
    scene = dict(
            xaxis = dict(title  = 'Age'),
            yaxis = dict(title  = 'Spending Score'),
            zaxis = dict(title  = 'Annual Income')
        )
)
fig = go.Figure(data=data, layout=layout)
py.offline.iplot(fig)

Conclusion

Back to top
